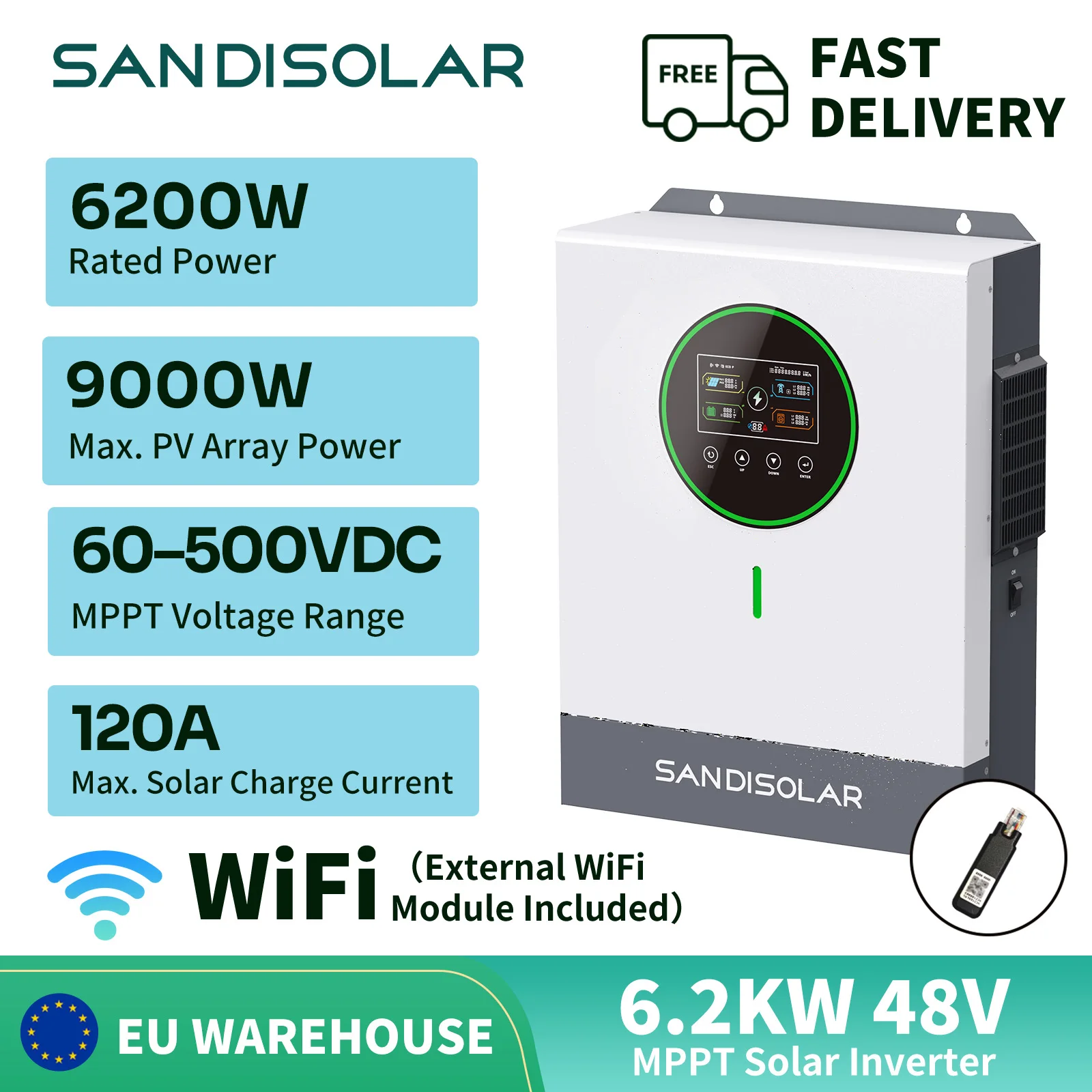

SANDISOLAR 6200W 48V Onduleur Solaire Hors Réseau 230V Onde Sinusoïdale Pure 9000W PV Max 120A Chargeur MPPT Double Sortie AC RS485
€431.20
14 en stock
14 en stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Poids | 10.000 livres |
|---|---|
| Dimensions | 54 × 39 × 21 pouce |
| Nom de marque | SANDISOLAR |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 438*312*122 |
| Fréquence de sortie | 50HZ/60HZ |
| Type de sortie | DOUBLE |
| est_personnalisé | Oui |
| Courant de Sortie | 120A |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | 48V 6KW |
| MODEL | SD-4862W-II-EU |
| PHASE | 1-Phase In /1-Phase Out |
| Maximum PV Input Power | 9000W |
| Maximum Main Output Power | 6200VA/6200W |
| Maximum Second Output Power | 6200VA/6200W |
| Maximum Total Output Power | 6200VA/6200W |
| Parallel Capability | NO |
| Lithium Battery activation | YES ( By PV or Utility) |
| Lithium Battery communication | YES(RS485) |
| WIFI | YES |
| Nominal Voltage | 230VAC, 12400VA |
| Acceptable Voltage Range 1 | 170 to 280VAC For personal Computer |
| Acceptable Voltage Range 2 | 90 to 280VAC For Home Appliances |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Dual Outputs | Yes |
| Transfer Time | 10ms For personal Computer, 20ms For Home Appliances |
| Peak Efficiency | 0.94 |
| Overload Protection | 5s@>=140% load, 10s@100%~140% load |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |

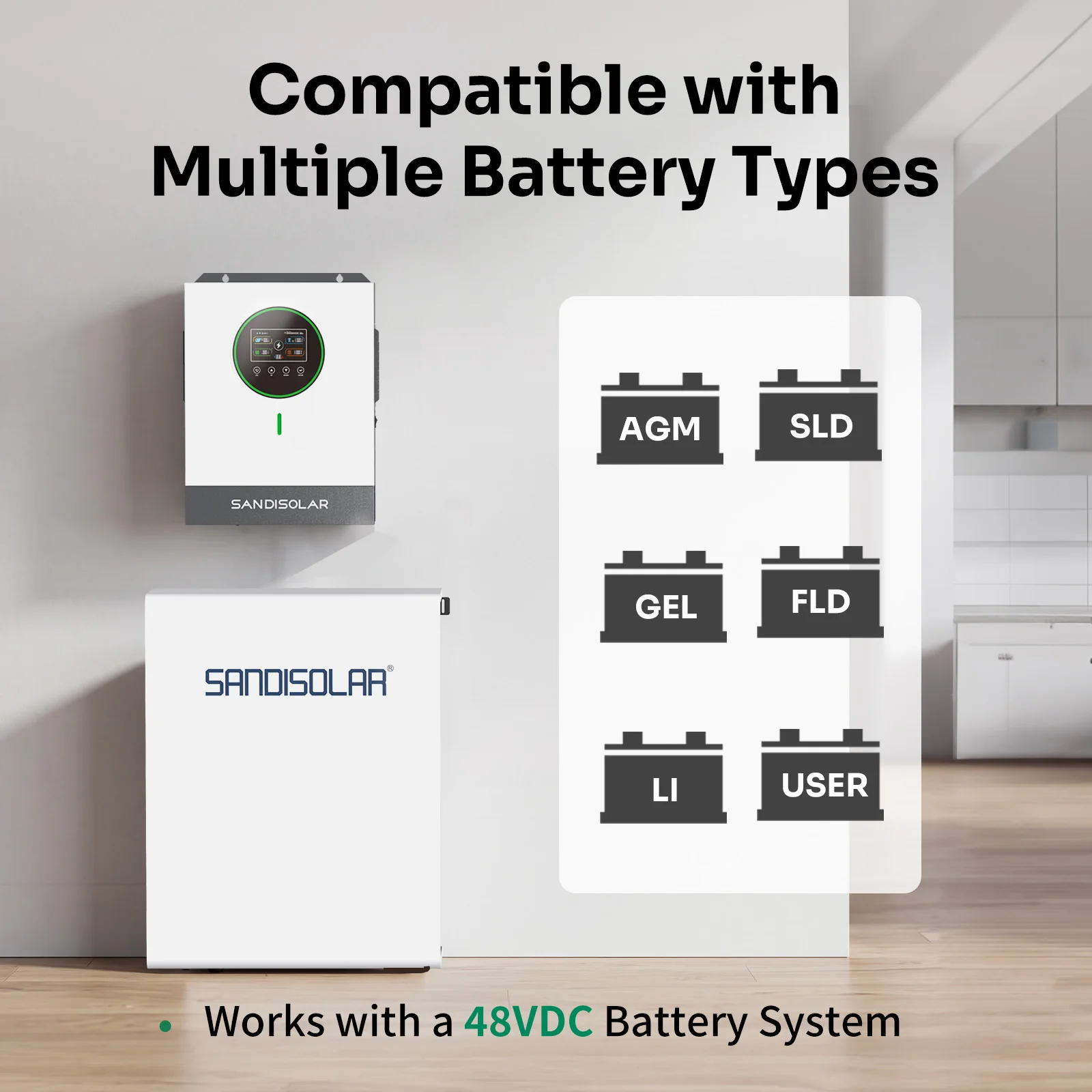

| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC/CV |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 9000W |

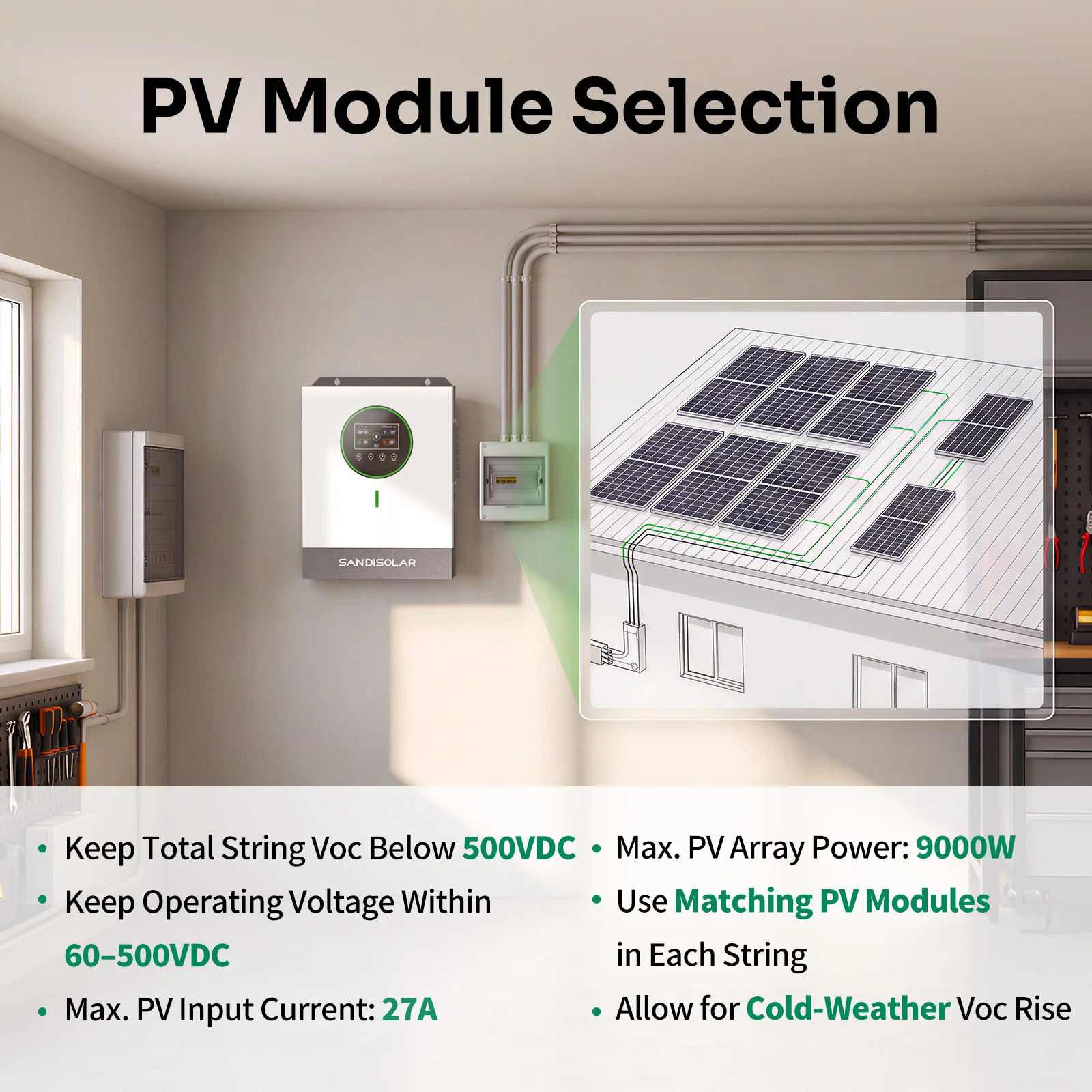

| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~500VDC |
| Max.Solar Input Current | 27A |
| Max.Solar Charge Current | 120A |
| Max.AC Charge Current | 120A |
| Max.Charge Current | 120A |
| Dimensions | 438x328x120mm |
| Net Weight (KGS) | 8.2 |
| Communication Interface | RS485/RS232 |
| Operating Temperature Range | -10°C to 55°C |
| Storage temperature | -15°C~ 60°C |
| Humidity | 5% to 95% Relative Humidity |
| Ingress Protection | IP21 |
